ION Bottleless Water Cooler Specs & Maintenance

Installation is easy!

Customer Service
888.788.8708

Installation

Rt Face Titanium Ion

It’s all inside the box

After your connections are ready, just open the box and you’ll find everything you need to complete your installation.

  • Owners Manual
  • Electrical Power Cord
  • Water Tubing Kit with Shut-off valve

The CarbonPlus filter is already pre-installed in your ION.

Easy Hook Up

Easy hook up

It’s a short list and even easier than hooking up an ice maker to your fridge.

Electrical Connection

  • Grounded 120V outlet (with GFI - Ground Fault Interruption)
  • 15 to 20 AMP circuit
  • Outlet located within 4 feet of ION

Plumbing Connection

  • Cold Water Supply
  • ¼" OD Tubing at connection
  • 1 gallon/minute water flow
  • 30 psi min. pressure

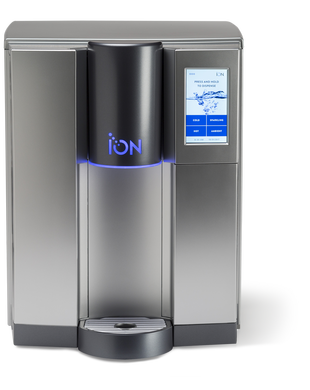

Titanium With Cold

Plug N Play™ software

It’s never been simpler. After connecting the water tubing and the electrical cord to the ION, Plug N Play automatically prepares your ION for service. After about 10 minutes, the setup is complete and you’ll be ready to enjoy your new, endless supply of high quality drinking water.

  TS100 TS200 TS300 TS400
Ambient
•
•
•
•
Cold
•
•
•
•
Sparkling
•
•
Hot
•
•
Cold Capacity* 8GPH
Hot Capacity** 2GPH 2GPH
Dimensions (W x D x H) 13.6" x 20.6" x 16.2" / 346mm x 523mm x 412mm
Weight 36 lbs. 38 lbs. 43 lbs. 45 lbs.
Electrical Supply 120 VAC and 230 VAC 50/60 hz
* Cold Water Capacity based on 70°F inlet water and 41°F outlet, 8-ounce draw/minute.
** Hot Water Capacity based on 70°F inlet water and 185°F outlet, 6-ounce draw/minute.

Maintenance

Filters 2018


Filter Changes

A simple twist to remove the CarbonPlus Filter, without any tools…even without turning off the water supply. CarbonPlus filter comes standard with all appliances, rated for 1500 gallons, reducing contaminants down to 0.5 micron.

Specs Faucet Bg


Faucet

Made from BPA free plastic, the easily removable faucet is dishwasher safe.

With a simple monthly check, maintenance has never been easier with the ION bottleless water cooler.

Specs Drip Tray 2018


Drip Tray

As part of the general maintenance program, the Drip-Tray will need to be wiped out or run through the dishwasher as needed.

Drip-Trays are also available in larger capacities with a drain option. This can be used in areas that experience high usage and have a drain available.
